ชิลเลอร์

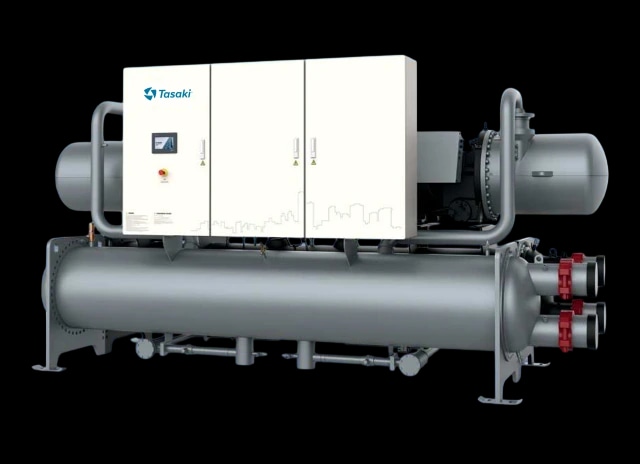

เครื่องทำน้ำเย็นชนิดสกรูระบายความร้อนด้วยน้ำ
Water Cooled Screw Chiller
WIxxxH-CC1FHGEV / WIxxxA-CC1FHGE
1,080,000 BTU1,200,000 BTU1,320,000 BTU1,440,000 BTU1,560,000 BTU1,800,000 BTU2,040,000 BTU2,160,000 BTU2,400,000 BTU2,640,000 BTU2,880,000 BTU3,000,000 BTU3,120,000 BTU3,240,000 BTU3,360,000 BTU3,600,000 BTU3,840,000 BTU3,960,000 BTU4,200,000 BTU4,560,000 BTU4,800,000 BTU5,160,000 BTU5,400,000 BTU5,640,000 BTU5,760,000 BTU6,000,000 BTU6,600,000 BTU
เครื่องทำน้ำเย็นชนิดสกรูระบายความร้อนด้วยน้ำ ทาซากิ ผ่านการรับรอง AHRI Water-Cooled Water-Chilling and Heat Pump Water-Heating Packages Certification ออกแบบคอนเดนเซอร์แบบ bundled tube เพื่อประสิทธิภาพการแลกเปลี่ยนความร้อนที่ดีขึ้น รองรับ Smart Grid
สเปกเต็ม (เปรียบเทียบตามขนาด)
| รุ่น | WI90A-CC1FHGE | WI90H-CC1FHGEV | WI100A-CC1FHGE | WI100H-CC1FHGEV | WI110A-CC1FHGE | WI120A-CC1FHGE | WI120H-CC1FHGEV | WI130A-CC1FHGE | WI150A-CC1FHGE | WI150H-CC1FHGEV | WI170A-CC1FHGE | WI180H-CC1FHGEV | WI200A-CC1FHGE | WI200H-CC1FHGEV | WI220A-CC1FHGE | WI220H-CC1FHGEV | WI240A-CC1FHGE | WI240H-CC1FHGEV | WI250A-CC1FHGE | WI260H-CC1FHGEV | WI270A-CC1FHGE | WI280H-CC1FHGEV | WI300A-CC1FHGE | WI300H-CC1FHGEV | WI320A-CC1FHGE | WI330H-CC1FHGEV | WI350A-CC1FHGE | WI350H-CC1FHGEV | WI380H-CC1FHGEV | WI400A-CC1FHGE | WI400H-CC1FHGEV | WI430H-CC1FHGEV | WI450A-CC1FHGE | WI450H-CC1FHGEV | WI470A-CC1FHGE | WI480H-CC1FHGEV | WI500A-CC1FHGE | WI500H-CC1FHGEV | WI550A-CC1FHGE | WI550H-CC1FHGEV |
| ระบบไฟฟ้า (V/Ph/Hz) | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| ความสามารถทำความเย็น (BTU/hr) | 1,046,845 | 1,079,601 | 1,133,172 | 1,199,708 | 1,285,694 | 1,430,710 | 1,435,146 | 1,555,253 | 1,762,370 | 1,799,563 | 2,032,271 | 2,159,543 | 2,346,870 | 2,399,417 | 2,570,024 | 2,639,290 | 2,834,123 | 2,821,499 | 2,949,795 | 3,119,378 | 3,247,334 | 3,359,252 | 3,504,268 | 3,599,808 | 3,831,833 | 3,951,258 | 4,179,872 | 4,200,344 | 4,558,619 | 4,695,105 | 4,797,469 | 5,159,156 | 5,285,405 | 5,398,005 | 5,606,146 | 5,756,280 | 5,926,887 | 5,998,542 | 6,582,018 | 6,537,660 |
| กำลังไฟ (W) | 52,690 | 54,970 | 57,330 | 61,470 | 65,300 | 72,070 | 73,620 | 78,250 | 87,040 | 89,890 | 99,510 | 106,700 | 115,300 | 117,400 | 124,900 | 128,400 | 137,700 | 137,600 | 148,400 | 151,800 | 154,500 | 162,300 | 171,800 | 171,900 | 187,200 | 192,200 | 205,100 | 205,200 | 229,000 | 228,000 | 233,800 | 255,400 | 252,700 | 258,700 | 267,200 | 275,400 | 279,900 | 288,600 | 309,300 | 303,200 |
| COP | 5.82 | 5.75 | 5.79 | 5.72 | 5.77 | 5.81 | 5.71 | 5.82 | 5.93 | 5.86 | 5.98 | 5.93 | 5.96 | 5.98 | 6.03 | 6.02 | 6.03 | 6 | 5.82 | 6.02 | 6.16 | 6.06 | 5.97 | 6.13 | 5.99 | 6.02 | 5.97 | 5.99 | 5.83 | 6.03 | 6.01 | 5.91 | 6.13 | 6.11 | 6.14 | 6.12 | 6.2 | 6.09 | 6.23 | 6.32 |
| IPLV | 7.46 | 8.49 | 7.88 | 8.74 | 7.83 | 7.14 | 8.98 | 7.37 | 7.11 | 8.71 | 7.63 | 9.01 | 7.78 | 8.82 | 8.61 | 9.17 | 8.66 | 9.25 | 6.84 | 9.34 | 8.62 | 9.1 | 7.27 | 9.23 | 7.05 | 9.33 | 8.08 | 9.35 | 9.25 | 8.26 | 9.28 | 9.36 | 9.3 | 9.7 | 9.32 | 9.7 | 9.33 | 9.71 | 9.13 | 9.9 |
| กระแสไฟรวม (A) | 91 | 89.8 | 99 | 100.4 | 112.7 | 1124.4 | 120.3 | 135.1 | 150.3 | 146.9 | 171.8 | 174.3 | 199.1 | 191.8 | 215.6 | 209.8 | 237.7 | 224.9 | 256.3 | 248 | 266.7 | 265.1 | 296.6 | 280.8 | 323.2 | 313.9 | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
| BTU | 1,080,000 | 1,080,000 | 1,200,000 | 1,200,000 | 1,320,000 | 1,440,000 | 1,440,000 | 1,560,000 | 1,800,000 | 1,800,000 | 2,040,000 | 2,160,000 | 2,400,000 | 2,400,000 | 2,640,000 | 2,640,000 | 2,880,000 | 2,880,000 | 3,000,000 | 3,120,000 | 3,240,000 | 3,360,000 | 3,600,000 | 3,600,000 | 3,840,000 | 3,960,000 | 4,200,000 | 4,200,000 | 4,560,000 | 4,800,000 | 4,800,000 | 5,160,000 | 5,400,000 | 5,400,000 | 5,640,000 | 5,760,000 | 6,000,000 | 6,000,000 | 6,600,000 | 6,600,000 |
เอกสารสินค้า
แคตตาล็อกและสเปกสินค้า
